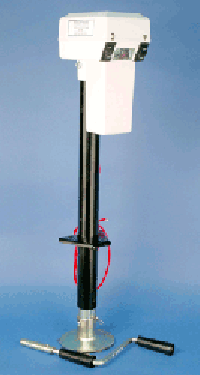

Power Tongue Jack

Description

At the time of hitching your travel trailer onto your RV, you must ensure that it is perfectly aligned and on the same level as your vehicle. A tongue jack performs this exact function for you. By using the device, you can effort essly raise or lower the trailer from underneath to ensure an easy hitching or unhitching process. Purchase the right power tongue jack for your trailers or campers at Venture Mfg. Co and gain a good return on your investment.

Power Tongue Jack Specifications

Venture’s Power Tongue Jack is available for varied industrial applications in the below listed specifications. We can also fulfill your custom requirements by incorporating preferred features, specifications and options. (Contact our customer care executives to know more about our custom fabrication capabilities)

  • Dynamic Load - 2,500 lbs / Static Load - 5,000 lbs
  • Duty Cycle - 20%
  • Speed @ Rated Load - 10 IPM; @ 1,000 lbs - 11.5 IPM; @ no load - 13 IPM
  • Manual Crank Torque @ Rated Load - 160 in-lbs
  • Max Amps @ Rated Load - 30 Amps (typical)
  • 30 Amp Fuse Protected

Specialized Features and Benefits

Power Tongue Jack Features

Power Tongue Jack from Venture has become a huge success since its entry into the market; thanks to its innovative design, robust construction and extreme operational excellence. The product reaches customers with the following features:

  • Dynamic Load - 2,500 lbs / Static Load - 5,000 lbs
  • Mounts on all standard RV couplers
  • Improved mounting design
  • 18" Stroke
  • All metal gears / Bronze jack nut
  • High strength tube construction
  • Easy access manual crank
  • Convenient night light
  • Easy fuse and light replacement
  • Removable foot pad
  • Water resistant motor and gear housing
  • Emergency crank socket included
  • Enhanced rocker switch for improved durability

Talk to us to find a perfect Power Tongue Jack that best suit your application requirements. We support you comprehensively to procure the right product at the best price.
