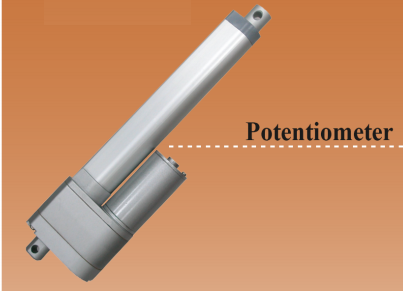

VMD3 Potentiometer Actuator for Precise Movement and Measurement

The VMD3 potentiometer actuator is the ideal solution when you wish to measure and record the exact position of your actuator in an application. This product offered by Venture Mfg. Co. provides benefits of power and reliability.

Specialized Features and Benefits

Actuator Features

As the name suggests, this product comes with an in-built potentiometer, which can provide feedback when required. The extension and outer tubes are constructed from industrial grade aluminum, which adds to the product’s light weight and precise operation. Preset limit switches provide ease of control. Clevis to clevis mounting ensures that the product will be sturdy during operation.

Our VMD3 potentiometer actuator is compatible with a variety of industrial systems. These actuators are extremely useful in application in marine, robotics, agriculture, and manufacturing industries.

Product Specifications

The general specifications of the VMD3 potentiometer actuator include:

  • Application Temperature Range: -26oC to 65oC
  • Motor Type: DC Motor
  • Voltage Options: 12 and 24 V
  • Duty Cycle in Percentage: 25%
  • Gear Ratio Options: 5:1, 10:1, 20:1, 30:1, and 40:1
  • Stroke Options: 50, 100, 150, 200, 250mm
  • Maximum Load: 1000 N
  • Maximum Speed: 45 mm per second

The actuator’s design and construction adhere to the regulations of IP54 and IP65.

Technical Data

The following information provides detailed specifications of Potentiometer vmd3 actuator.

potentiometer vmd3 actuator Stroke 50 100 150 200 250 300
A 195 246 297 348 399 450
B 245 346 447 548 649 750

Value of POT
Stroke(mm) Resistance(Ω)
50 0.3-9.3K
100 0.3-9.7K
150 0.3-8.6K
200 0.3-9.6K
250 0.3-9.3K
300 0.3-9.3K
Remark : tolerance ± 0.3K

potentiometer vmd3 actuator technical data

potentiometer vmd3 actuator technical dia
