Model 800/900 Continuous Duty Operator


Byan Systems 800/900 Continuous Duty Operator – for Large-Sized Applications


Venture Mfg. Co. provides The Byan Systems Model 800/900 Continuous Duty Operator in its product inventory. This product and its successive model are the best solutions for large-sized gates that are used on a continuous basis.


Features of 800/900 Continuous Duty Operators


Like the other Byan Operator products, the 800 and 900 models are self-contained units, which protect the gate operator from contamination. The specially formulated hydraulic fluid allows the operator to work consistently, even in environments with extreme temperatures. Flow control makes it easier to adjust swinging gated speeds. Operator pressure can be adjusted to meet weights of heavy gates, and combat strong wind loads.

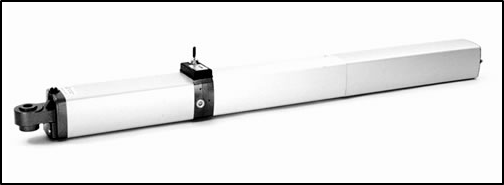

                                                 800-900 Continuous Duty Operator


While some of the features of this model are common with the other operators, there are some features that are unique to this product:


  • Overall Operator Length: 42 inches
  • Piston Travel: 9.84 inches
  • Maximum Height and width: 4.33 inches
  • Maximum speed: Approximately 13 seconds at 90 degrees
  • Gate Length: 16 Feet
  • Weight of Gate Leaf: 3000 lbs
  • Open and Close Duty Cycle: Continuous

Venture Mfg. Co. provide model 800/900 continuous duty operator to support large gate applications. The operators provide benefits of automation, fast operation, durability, and inimitable performance.

If you would like buy our products then request a quote today , so that we will get back to you as early as possible.
