VIA5 Acme Series Linear Actuators

Description

VIA5 Acme Screw Actuator for High Load Applications

As part of our growing product line, Venture Mfg. Co. has recently begun providing VIA5 linear actuators. We provide these actuators in two screw types – Acme and Ball Screw actuators.

VIA5 Acme Screw Actuator

This actuator type is designed is similar to our 800 series actuators. They are specifically designed to provide solutions for high load processes. The actuator’s construction consists of an aluminum housing, and is operated with the help of powder metallurgy gears. A steel extension tube is used for the actuation process. The design includes a special clutch in case of overloading problems. The actuator is self-locking, which increases its safety.

Specialized Features and Benefits

The general specifications of the Acme screw actuator include:

  • Operational Temperature Range: -26oC to 65oC
  • Motor Type: AC Motor
  • Voltage Options: 100, 150, and 230 V
  • Duty Cycle in Percentage: 25%
  • Gear Ratio Options: 10:1, 20:1, and 40:1
  • Static Load Capacity: 4,500 N
  • Maximum Load: 3,500 N
  • Maximum Speed: 28 mm per second

The actuator adheres to the regulations of IP54. The Acme screw actuator can also be used along with a potentiometer, and adjustable limit switches. These additional components adhere to the regulations of IP65.

Specifications

The following information provides detailed specifications for the Acme screw actuator. We have provided specifications for standard products, as well as ones with a potentiometer.

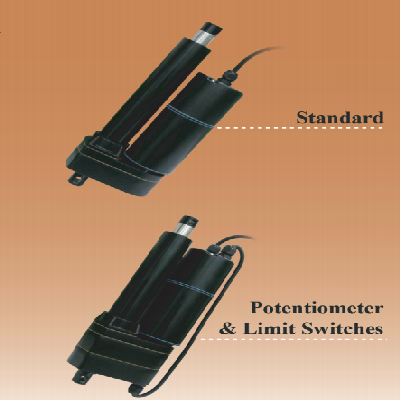

Standard VIA5 Acme Screw Actuator
VIA 5 ACME Screw Strock(+-5mm) 102mm 152mm 203mm 305mm 457mm 610mm
Retracted Length(A+-3mm) 380mm 431mm 482mm 584mm 737mm 890mm
Extended Length(B+-3mm) 482mm 583mm 685mm 889mm 1194mm 1500mm

Standard VIA5 Acme Screw Linear Actuators

VIA5 Acme Screw Actuator With Limit Switch or Potentiometer
VIA 5 ACME Screw actuator with Limit Switch Strock(+-5mm) 102mm 152mm 203mm 305mm 457mm 610mm
Retracted Length(A+-3mm) 456mm 507mm 558mm 660mm 818mm 971mm
Extended Length(B+-3mm) 558mm 659mm 761mm 965mm 1275mm 1581mm

VIA5 Acme Screw Actuator With Limit Switch

VIA5 Acme Screw Actuator Technical Data

VIA5 Acme Screw Actuator Technical Data
