VIA5 Ball Screw Series Linear Actuator

Description

VIA5 Ball Screw Actuators for Multiple Application Solutions

As part of the VIA5 actuator line, Venture Mfg. Co. offers VIA5 ball screw actuators. This is the second actuator type that is offered along with the Acme actuators.

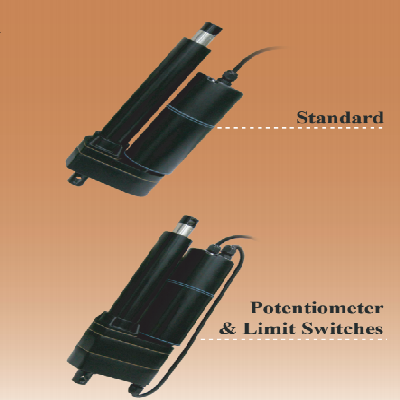

VIA5 Ball Screw Actuator

Like our 850 series actuators , this ball screw actuator is capable of providing benefits of flexibility, durability, and operation proficiency. Like the Acme screw type, this actuator’s construction also consists of an aluminum housing. It is operated with the help of powder metallurgy gears. A steel extension tube is used for the actuation process. The design includes a special clutch in case of overloading problems. The actuator is self-locking, which increases its safety.

Specialized Features and Benefits

The general specifications of the Acme screw actuator include:

  • Operational Temperature Range: -26oC to 65oC
  • Motor Type: AC Motor
  • Voltage Options: 100, 150, and 230 V
  • Duty Cycle in Percentage: 25%
  • Gear Ratio Options: 5:1, 10:1, 20:1, 30:1, and 40:1
  • Static Load Capacity: 13,600 N
  • Maximum Load: 7,000 N
  • Maximum Speed: 56 mm per second

The actuator adheres to the regulations of IP54. The Acme screw actuator can also be used in cohesion with a potentiometer, and adjustable limit switches. These additional components adhere to the regulations of IP65.

Specifications

The following information provides detailed specifications for the ball screw actuator. We have provided specifications for standard products, as well as ones with a potentiometer.

Standard VIA5 Ball Screw Actuator
VIA 5 Ball Screw Actuator Strock(+-5mm) 102mm 152mm 203mm 305mm 457mm 610mm
Retracted Length(A+-3mm) 380mm 431mm 482mm 584mm 737mm 890mm
Extended Length(B+-3mm) 482mm 583mm 685mm 889mm 1194mm 1500mm

Standard VIA5 Ball Screw Actuator Techical Data

VIA5 Ball Screw Actuator With Limit Switch or Potentiometer
VIA 5 Ball Screw actuator with Limit Switch Strock(+-5mm) 102mm 152mm 203mm 305mm 457mm 610mm
Retracted Length(A+-3mm) 456mm 507mm 558mm 660mm 818mm 971mm
Extended Length(B+-3mm) 558mm 659mm 761mm 965mm 1275mm 1581mm

VIA5 Ball Screw Actuator With Limit Switch

VIA5 Ball Screw Actuator Technical Data

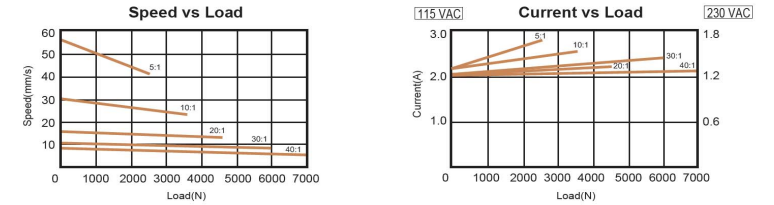

VIA5 Ball Screw Actuator Technical Data
