Compact and Rugged VMD3 Standard Actuators for Optimum Results

At Venture Mfg. Co., we are continually taking steps to widen our product range. One of the newest additions to our product line is the VMD3 Series actuators. We provide three different types of actuators in this series – Standard, Hall Effect, and Potentiometer. Here, we are discussing the features and benefits of the standard actuator.

Specialized Features and Benefits

VMD3 Actuator Features

Like our existing VMD products, the standard actuators are designed to provide immense precision and high speeds for industrial applications. They are designed to be compact and lightweight, making them easy to install and use.

The ruggedness of the product comes from its construction. It is manufactured with aluminum extension and outer tubes. It consists of clevis to clevis mounting, which enhances the installation and operation. The design also includes preset limit switches.

This actuator can be used for applications in industrial and commercial offices, and food and beverage factories.

Standard Actuator Specifications

The general specifications of the standard VMD3 actuator include:

  • Application Temperature Range: -26oC to 65oC.
  • Motor Type: DC Motor
  • Voltage Options: 12 and 24 V
  • Duty Cycle in Percentage: 25%
  • Gear Ratio Options: 5:1, 10:1, 20:1, 30:1, and 40:1
  • Stroke Options: 50, 100, 150, 200, 250mm
  • Maximum Load: 1000 N
  • Maximum Speed: 45 mm per second

The actuator can also be used in cohesion with a potentiometer, and Hall Effect sensors. The product and the ancillary components adhere to the regulations of IP54 and IP65.

Technical Data

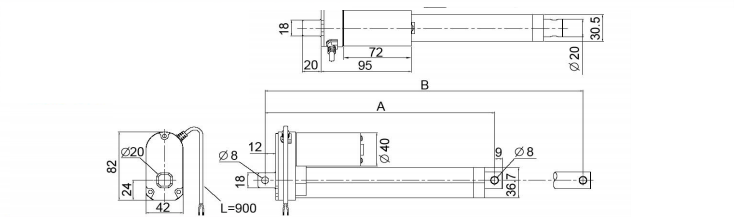

The following information in the picture below provides detailed specifications for the VMD3 standard actuator.

Standard vmd3 Actuator Stroke(+-5mm) 84mm 135mm 186mm 288mm 457mm 610mm
Retracted Length(A+-3mm) 306mm 357mm 408mm 510mm 737mm 890mm
Extended Length(B+-3mm) 390mm 492mm 594mm 798mm 1196mm 1502mm

Standard vmd3 Actuator Technical Data

standard vmd3 actuator technical data
