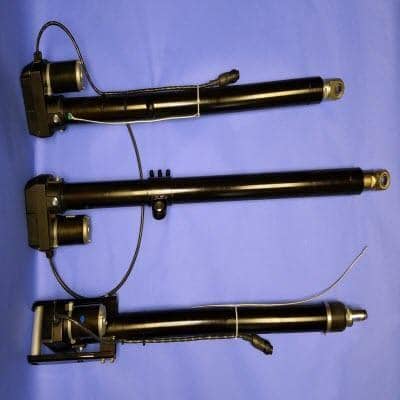

Standard Solar Ball Screw Actuators

Standard Solar Ball Screw Actuators

Make & Model :

Type :
Solar ball screw actuators
Voltage :
12vdc, 24vdc, 36vdc
Amperage :
24a, 16a, 10a
Gear Ratio:
58:1
Limits Switches :
Standard button type
Stroke :
To Suit (4" to 66")
End Mount :
Standard 3/4" swivel

Description

Today, electric linear actuators are being increasingly used in the solar applications. These actuators aid in maximizing the efficiency of solar panels. The solar tracking actuators are often equipped with ball screws because they help achieve faster speeds at continuous duty cycles. Venture Mfg. Co. is one of the leading manufacturers of standard solar ball screw actuators in the US. We provide ball screw actuators for solar panels, and ball screw actuators for solar tracking jacks.

Benefits of Standard Solar Ball Screw Actuators

We provide solar ball screw actuators in compact designs, which has helped our clients reduce their carbon footprint, whilst improving the performance of their solar applications. The following benefits of these actuators have contributed to their popularity.

  • Robust Construction: A high level of precision is required in solar tracking applications, as several calculations are based on it. The linear actuators for solar tracking system are designed to deliver maximum precision while operating.
  • High Precision in Positioning: Fitted with a ball screw, guide rail, and slide block, these actuators are designed to ensure accurate positioning.
  • Low Power Consumption: All standard solar ball screw actuators provided by us are equipped with a high-performance motor, which consumes low power.
  • Minimal Maintenance Required: The actuators are equipped with nuts constructed from a special material, which helps ensure lifelong lubrication. Thus, there are no chances of fluid leakage or regular repairs, as with several other hydraulic actuators.
  • Available in Several Versions: Solar tracking actuators with ball screw threads can be availed in RoHS compliant and CE versions.

All the above-mentioned features help ensure durability, whilst providing smooth and consistent operation.

Capabilities of the Standard Solar Ball Screw Actuators

We can provide you ball screw actuators for solar panels, or ball screw solar tracking jacks in the following specifications:


Type Solar ball screw actuators
Voltage: 12vdc, 24vdc, 36vdc
Amperage 24a, 16a, 10a
Gear Ratio 58:1
Sensor/Resolution Reed / 20 PPI (pulses per inch), 30 PPI, 40 PPI or Potentiometer/1K, 5K or 10K
Clutch/Torque none
Limits Switches Standard button type
Screw Type 3/4-5 Ball Screw / 5/8-5 Ball Screw
Stroke: To Suit (4" to 66")
Tube Mounting Long Heavy Duty Clamp ( for 3/4-5 Ball Screw) & Standard Heavy Duty Clamp ( for 5/8-5 Ball Screw)
End Mount Standard 3/4" swivel
Drop In Adjustable
Mounting Hardware 1/2" or 3/4" Mounting Bolt Kit
Speed .3 IPS (inches per second)
Rated Static Load 8000 pounds ( for 3/4-5 Ball Screw) & 3000 pounds( for 5/8-5 Ball Screw)
Rated Dynamic Load 4000 pounds ( for 3/4-5 Ball Screw) & 1500 pounds( for 5/8-5 Ball Screw)
Warranty Negotiable - Standard 2 yr. manufacturer defect, product only - repair or replace

The solar ball screw actuators can be availed with various options, such as pigtail and connectors, special tube settings, motor boot, extra-long heavy-duty clamp, tube boot, and an external ground strap.
We, at Venture Mfg. Co., are committed to delivering performance-driven ball screw actuators for solar applications. This commitment drives us to continuously evolve our processes, and utilize only high-quality materials for construction. Our consistency in designing, manufacturing, and delivering industry-grade actuators for solar applications have helped us build a long list of happy and satisfied customers.
