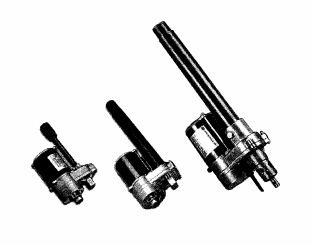

SJ 25 AC Actuator

Description

Rugged and Versatile SJ 25 AC Actuators for Commercial Applications

Venture Mfg. Co.’s VSJ Series actuators are popular among industrial customers for their compactness, versatility, and cost-efficiency. These powerful devices are designed for domestic and commercial applications.

Specialized Features and Benefits

SJ 25 AC Actuator Features

The VSJ products are similar to our SJ actuator series. The VSJ Series actuators are offered with both AC and DC motor gearboxes. Here, we will discuss the products designed with AC gearboxes.

The actuators are designed with acme screw configurations. The versatility of the products come mainly from its multiple mounting options. This can include square, tube, and clevis to clevis mounting. The actuator comes standard with integrated limit switches, which are adjustable.

One option provided by Venture Mfg. Co. is the addition of a potentiometer with the actuator. This will help provide accurate operation feedback. The metal gearbox protects the gear system against environmental contaminants. It also consists of a self-locking feature for improved safety. These features also allow the actuator to be used in strenuous and demanding applications.

These actuators are extremely useful when enhancing the performance of sports gear equipment, gymnasium gear, and floor care equipment, among others.

Standard Actuator Additional Features

The general specifications of the SJ 25 actuator include:

  • Voltage: 115 and 230 VAC
  • Duty Cycle in Percentage: 17%
  • Temperature for Motor Thermal Protection: +120+5oC
  • Certifications:
    • UL E128837
    • CSA – LR92531 (115 VAC), E226168 (230 VAC)

SJ 25 actuator Technical Data

The following information in the picture below provides detailed specifications for the VSJ 25 actuator.

Type Force Push Pull Max. Speed Stroke*(S) Retr. length**(L) Voltage Protection Class Weight
No Load Full Load
N N mm/s mm/s mm mm VAC IP kg
SJ255 2000 2000 7.2 6.6 100-600 S+190/200/215 115/230 N/A 4.0
SJ256 2500 2500 6.0 5.5 100-600 S+190/200/215 115/230 N/A 4.0
SJ258 3000 3000 4.5 4.0 100-600 S+190/200/215 115/230 N/A 4.0
SJ355 3000 3000 7.2 6.6 100-600 S+190/200/215 115/230 N/A 4.5
SJ356 3500 3500 6.0 5.5 100-600 S+190/200/215 115/230 N/A 4.5
SJ358 4000 4000 4.5 4.0 100-600 S+190/200/215 115/230 N/A 4.5
SJ455 4000 4000 7.2 6.6 100-600 S+190/200/215 115/230 N/A 5.0
SJ456 4500 4500 6.0 5.5 100-600 S+190/200/215 115/230 N/A 5.0
SJ458 5000 5000 4.5 4.0 100-600 S+190/200/215 115/230 N/A 5.0

SJ Series 1

SJ Series Technical Data

If you wish to know about our products or services, please contact us via telephone on (937) 233-8792, or via email at sales@venturemfgco.com.
