Model 500 Hydraulic Swing Gate Operator


Model 500 Hydraulic Swing Gate Operator for Residential and Industrial Gates


As the authorized distributor of Byan Systems Inc. gate operators, Venture Mfg. Co. provides four different operator models. Here, we will be looking at the model, 500 hydraulic swing gate operator.


This is the basic model, and is designed to be used on gates with lengths up to 12 feet. The gate leaf has the capability to endure weights up to 1500 lbs.


One important benefit of the 500 model operator is that it is manufactured with hydraulic fluid, which has been specially formulated to withstand extreme environments and temperatures. The fluid flow can be controlled to allow adjustment of the gate swing speed. The unit is self-contained, and can protect itself from debris and contamination.

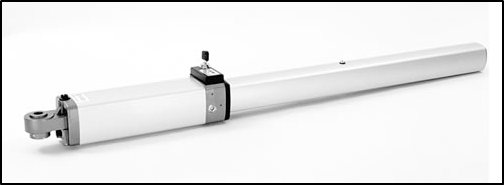

                                                 MODEL 500 HYDRAULIC SWING GATE OPERATOR


Features of 500 Hydraulic Swing Gate Operator for Residential & Industrial Gates


  • ETL compliance
  • 5 year warranty
  • Motor: 1/6 HP
  • Hydraulic Pump: Spur Gear
  • Power Supply: 115 V/220 V
  • AMP Draw: 4 AMPS
  • Temperature Range: -140 oF to 240 oF
  • Total Length of Operator: 38 inches o Piston Travel: 7.9 inches
  • Maximum Width and Height: 4.33 inches
  • Maximum Speed: Approximately 12 seconds at 90 degrees
  • Maximum Gate Opening Angle: 100 degrees
  • Duty Cycle (open/close): 40 per hour

Choose Byan Systems Inc. hydraulic gate operators provided by Venture Mfg. Co., and enhance the efficiency and security of your home or industrial establishment. If you would like to buy our products then request quote today , so that we will get back to you as early as possible.
