Hall Effect VMD3 series Actuator

Description

Versatile VMD3 Hall Effect Actuators for Extreme Application Environments

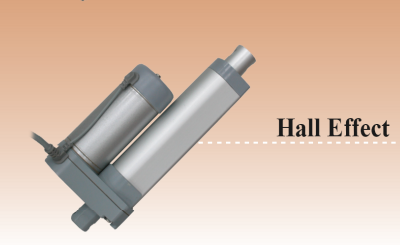

The VMD3 Hall Effect Actuators is a solution driven product offered by Venture Mfg. Co. The product’s name comes from the Hall Effect sensor. The addition of this transducer makes the product unique in terms of design, which provides immense application benefits.

Specialized Features and Benefits

Actuator Features

The addition of the Hall Effect sensor enhances the actuator’s various capabilities. This includes positioning, current sensing, speed detection, and proximity switching. Hall Effect sensors are impervious to environmental contaminants. Hence, the reliable linear actuator can be used in severe application environments. It can also be operated up to 100 kHz. Compared to mechanical switches, the sensors are more cost-effective and reliable in operation.

Hall Effect Actuator Specifications

The general specifications of the VMD3 Hall Effect actuator include:

  • Application Temperature Range: -26oC to 65oC
  • Motor Type: DC Motor
  • Voltage Options: 12 and 24 V
  • Duty Cycle in Percentage: 25%
  • Gear Ratio Options: 5:1, 10:1, 20:1, 30:1, and 40:1
  • Stroke Options: 50, 100, 150, 200, 250mm
  • Maximum Load: 1000 N
  • Maximum Speed: 45 mm per second

The actuator’s design and construction adheres to the regulations of IP54 and IP65.

Technical Data

The following information provides detailed specifications of the actuator.

hall effect vmd3 actuator Stroke 50 100 150 200 250 300
A 158 209 260 311 362 413
B 208 309 410 511 612 713

Hall Sensor
Gear Ratio Resolution(Pulses/mm)
5:1 2:3
10:1 3:6
20:1 6:9
30:1 10:6
40:1 14:3

hall effect vmd3 actuator technical data

If you wish to know about our products or services, please contact us via telephone on (937) 233-8792, or via email at sales@venturemfgco.com.
