FD Series Linear Actuator

Description

Fast and Versatile FD Series Linear Actuators for Commercial Applications

Venture Mfg. Co. provides linear actuators for industrial as well as commercial applications. To ensure that we can meet the needs of all our commercial customers, we manufacture and offer the FD Series Linear Actuators. These actuators are the perfect solutions for commercial products and systems.

Specialized Features and Benefits

FD Series Actuator Features

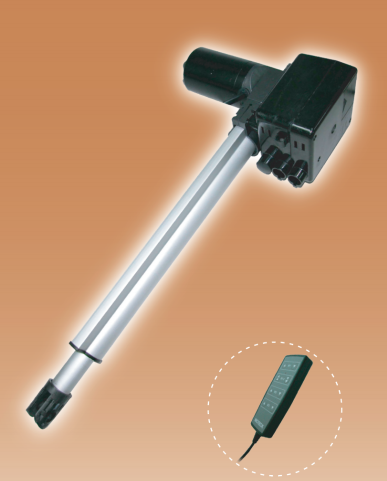

The actuators within the FD Series are designed to be tough, fast, and reliable. The extension and outer tubes are manufactured from industrial grade aluminum. The actuator is designed to produce low levels of noise during operation. Like our other Series actuators, these products are also installed via clevis to clevis mounting. One unique aspect of these products is that they are designed with an in-built AC converter. The powerful converter can be used along with 3 actuators in one application.

We at Venture also provide optional accessories with these actuators. A safety key can be designed into the handset for improved operation control. We can also provide an emergency lowering function, with two 9 volt DC batteries. The FD actuators are designed to be compatible with T, TI, TSC, and CB4M type control boxes.

We provide these actuators in the following models:

  • FD 24
  • FD A1
  • FD HS.PO
  • FD 228.278
  • FD C1 & C2

The actuators are extremely useful for fitness equipment, electronic home care products, and different types of furniture.

Standard Actuator Specifications

The general specifications of the FD actuators include:

  • Application Temperature Range: -20oC to +65oC
  • Motor Type: AC Motor
  • Converter Voltage: 110 or 230 V
  • Voltage Options: 12 and 24 V
  • Duty Cycle in Percentage: 10%
  • Stroke Options: 50, 100, 150, 200, 250 and 300mm
  • Maximum Load: 4000 N (pull), and 6000 N (push)
  • Maximum Speed: 8.3 mm per second

The duty cycle can also be performed with 2 minutes continuous operation every 20 minutes. We can also provide custom strokes to meet specific application requirements. The actuator can be used in cohesion with Hall Effect sensors, and push only systems. The actuators can also be designed with safety nuts.

Technical Data

The following information in the picture below provides detailed specifications for the FD series linear actuator.

FD Series linear actuator

Stroke 50 100 150 200 250 300
A 228 278 338 388 448 498
B 278 378 488 588 698 798

FD Series Connectors

FD Series Technical Data
